221 Series Mounting Carrier

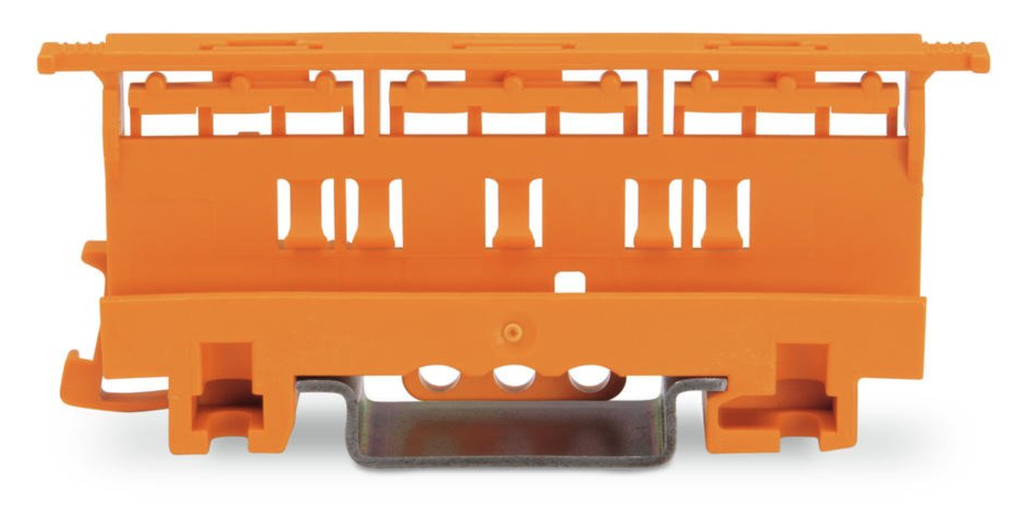

WAGO Mounting carrier for 221 Series
- for DIN-35 rail mounting/screw mounting
Brand: WAGO |

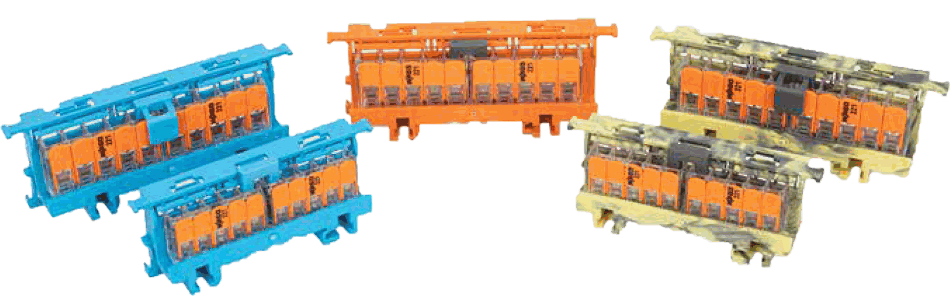

Meet the WAGO 221 Series Mounting Carrier Family!

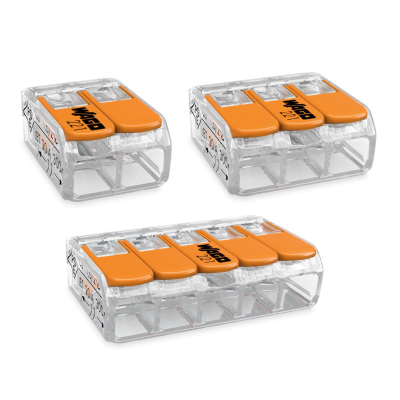

The perfect way to organize your WAGO 221 Series Splicing Connectors.
![](/web/image/4016-95aee0c2/series.png?access_token=ed9cf8e1-84b3-406e-89fd-a0766679897e)
![](/web/image/3931-8348273f/221%20mounting%201.png?access_token=427a7447-2ea6-47d5-96f2-d7bdfbf052a9)

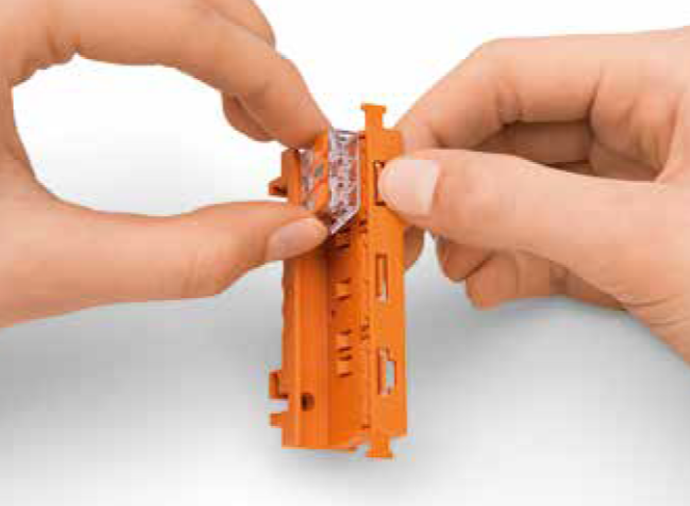

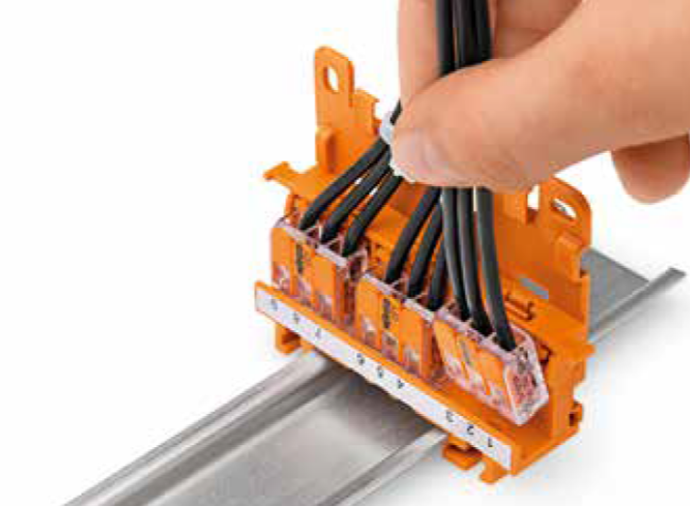

Inserting a connector into the mounting carrier
![](/web/image/3928-945973af/221%20mounting%202.png?access_token=2cbf9d3d-7ae2-4c87-aafe-651a846de3b9)
Removing a connector from the mounting carrier
![](/web/image/3929-ef046032/221%20mounting%203.png?access_token=923b39b6-05f6-4dd1-8682-5a1f64460842)
Removing a conductor
![](/web/image/3927-4ca287ba/221%20mounting%204.png?access_token=1dac333f-3e7c-4614-bc76-3106660d631a)

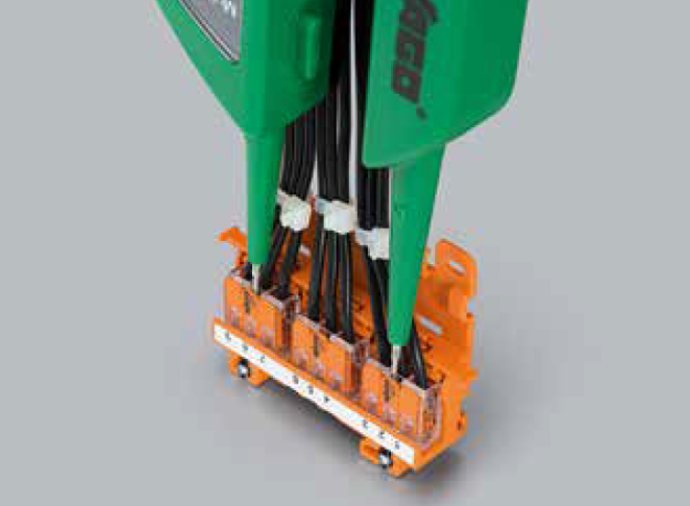

Testing connectors via test slots on top of the carrier
![](/web/image/3930-674ab942/221%20mounting%205.png?access_token=c878b7cc-77eb-404e-a531-b1ae59962f1e)

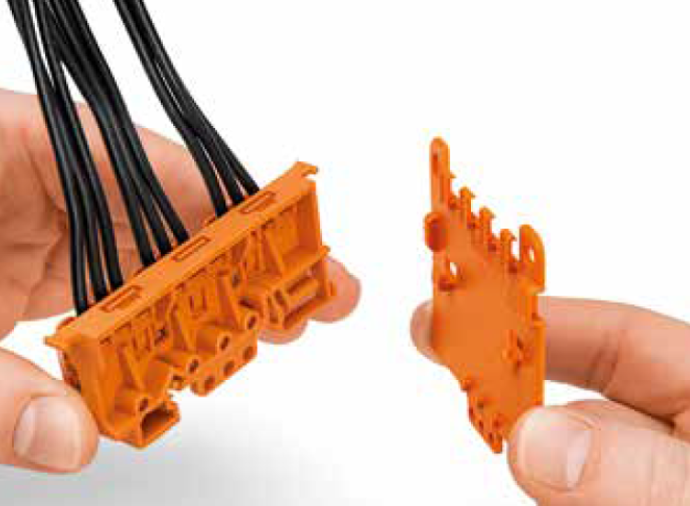

Securing a strain relief plate (222-505) to the mounting carrier
![](/web/image/3913-1d410ba5/221%20mounting%206.png?access_token=bd50cdba-2242-4cdf-869e-c48c0229b9a9)

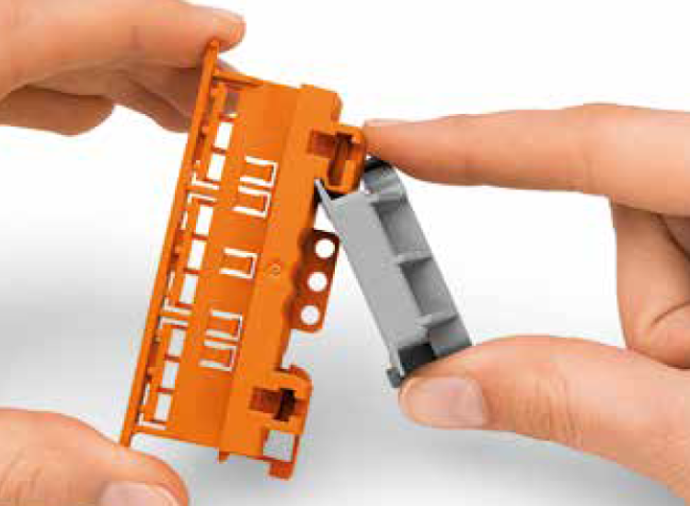

Snapping the angled DIN-rail adapter (222-510) onto the mounting carrier
![](/web/image/3914-67a2d7f6/221%20mounting%207.png?access_token=64443ec0-4656-455c-b967-51e9b1b12200)

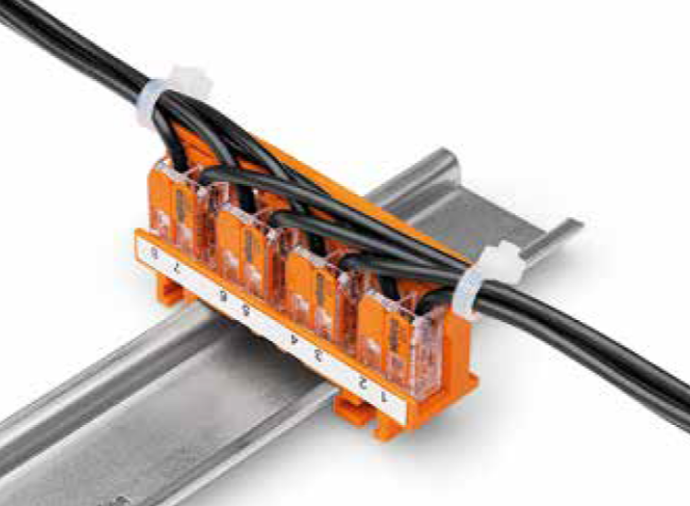

Strain relief via cable ties on the mounting carrier (transverse to the connectors' wiring direction) - clamping units labeled via marking strips (210-334)
![](/web/image/3920-ef046032/221%20mounting%203.png?access_token=923b39b6-05f6-4dd1-8682-5a1f64460842)

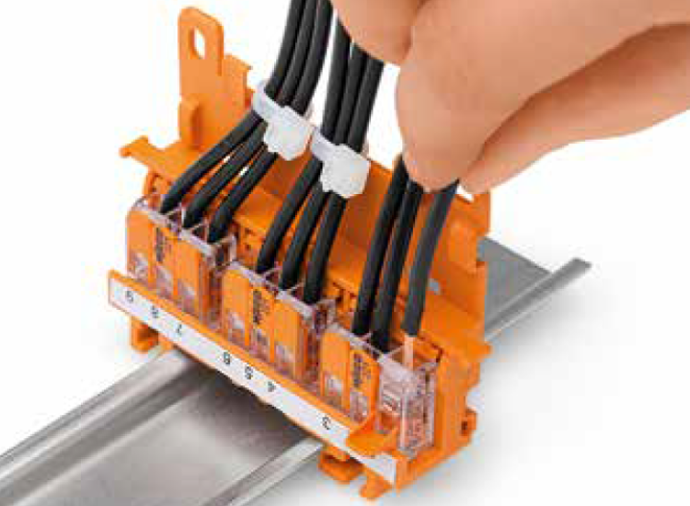

Vertical mounting with strain relief plate on DIN-35 rail
![](/web/image/3916-a9c63e40/221%20mounting%209.png?access_token=27cd3c8b-247b-4047-a094-98bf9ee01847)
Horizontal mounting on DIN-35 rail using an angled DIN-35 rail adapter
![](/web/image/3919-55352487/221%20mounting%2010.png?access_token=a02a1d83-d540-4879-9965-f267eb2f1a17)

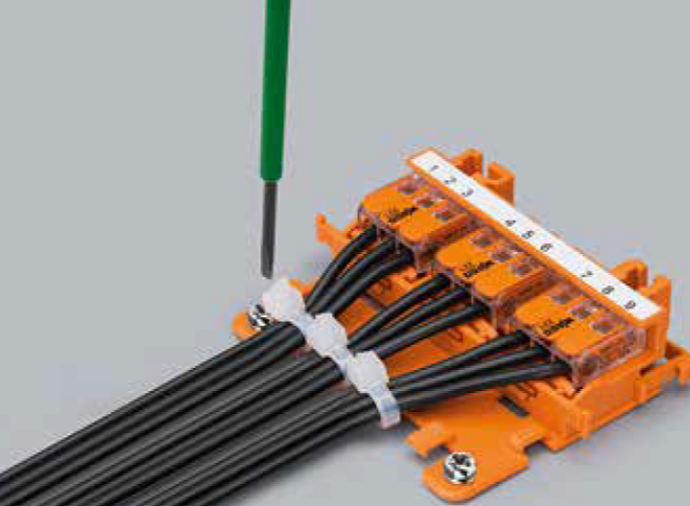

Horizontal screw mounting with strain relief plate on a flat surface
![](/web/image/3918-bd6a2c70/221%20mounting%2011.png?access_token=2ea4c9c7-5b65-4ace-a42b-a467fbc2ee62)

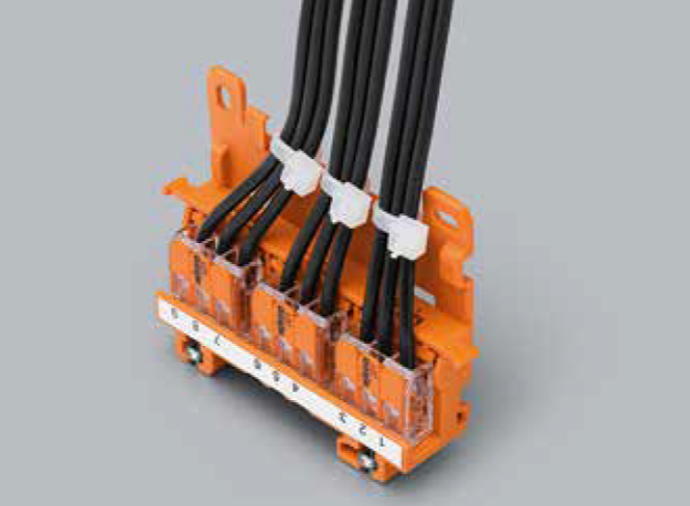

Vertical screw mounting with strain relief plate on a flat surface
Are 5 conductors not enough?
Not a problem!

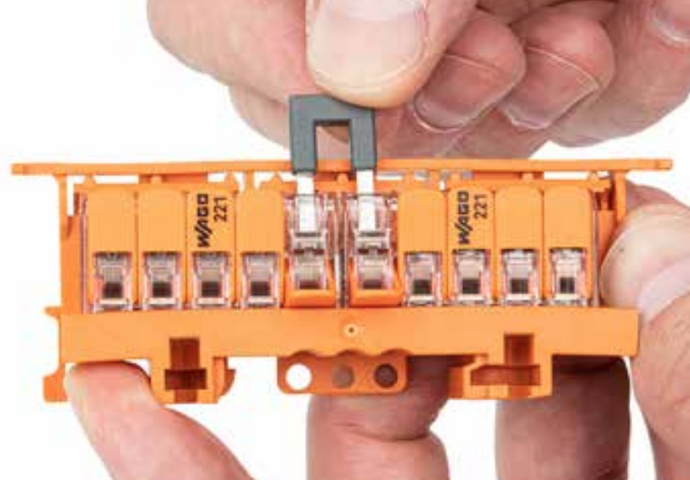

Combine your WAGO 221 Series Mounting Carrier with the 221 Series Jumper, allowing the combining of multiple 221 Series Splicing Connectors for a greater number of connections!
![](/web/image/3900-f17a5963/Jumpers%20Thumb.png?access_token=999c4f2a-3959-4e19-85fc-85c5162be059)
To be used with
