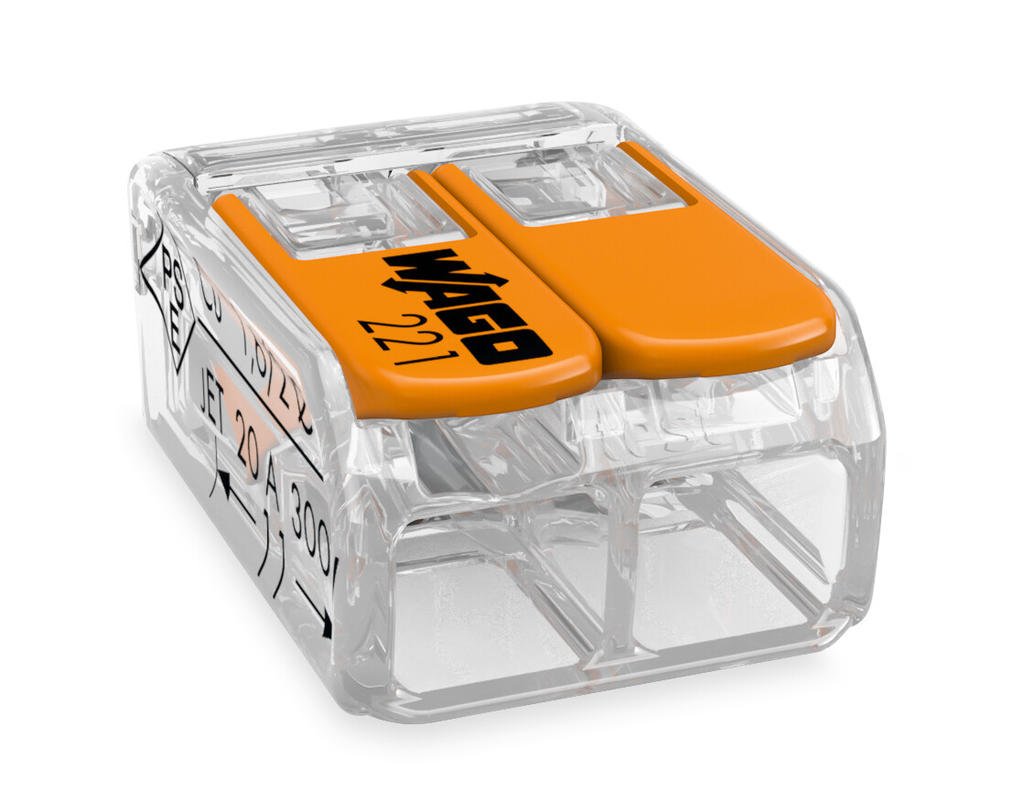

221 Series Connector
WAGO COMPACT Splicing CAGE CLAMP® Connector
- for all conductor types
- with orange levers
Brand: WAGO |
Colour: Orange |
IEC/EN 60664 Spec: 450V @ 32A |
UL 486C Spec: 600V @ 20A |
Meet the WAGO 221 Series Splicing Connector
Flexible. Fast. Safe.
Pull the lever up, insert a conductor and push the lever back down - done!
The 221 Series Splicing Connector connects solid, stranded and fine-stranded conductors easily, quickly and safely.
But this connector wants to do more!
The 221 Series Splicing Connector is well-suited for the following applications:
- Building Installations
- Hazardous areas
- Within Devices
Conductor Termination
![](/web/image/3969-fb13b9c9/221%20Step1.jpeg?access_token=0d2bf0c0-8093-4065-990c-e68a09355d56)

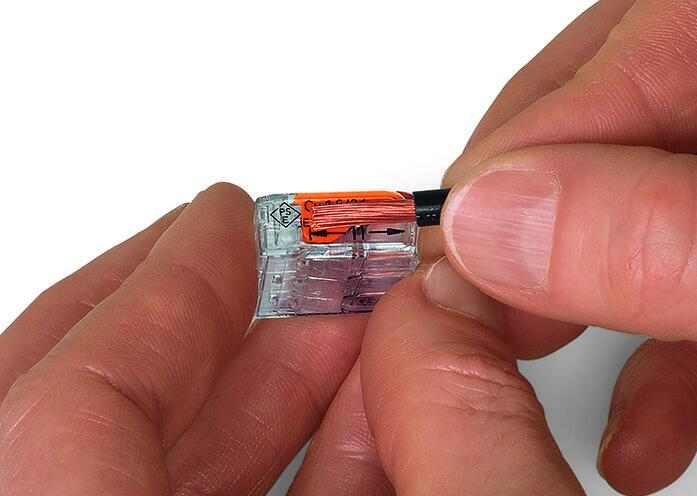

Step 1
Strip conductor to 11mm
![](/web/image/3970-12bee950/221%20Step2.jpeg?access_token=8241d497-a770-41c2-85a9-c145f3ef469a)

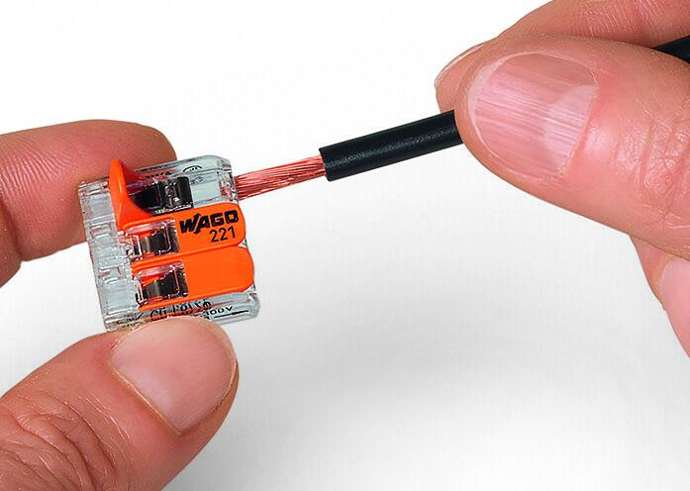

Step 2
Lift the lever to open the clamping unit and insert the stripped conductor
![](/web/image/3971-61435d39/221%20Step3.jpeg?access_token=62a6c670-711c-4084-9273-00d88264b07e)

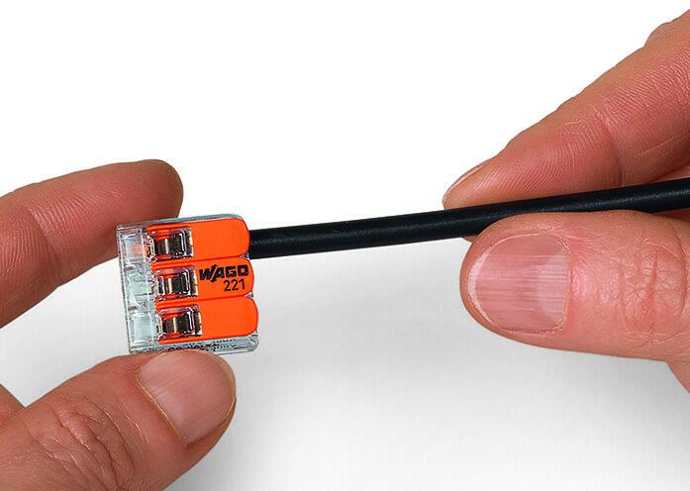

Step 3
Lower the lever to close the clamp
![](/web/image/3966-701c395a/221%20Conductors.png?access_token=93a25dae-8c92-468a-936c-a75e9a5b3a86)
For all conductors
- Fine Stranded
- Stranded
- Solid

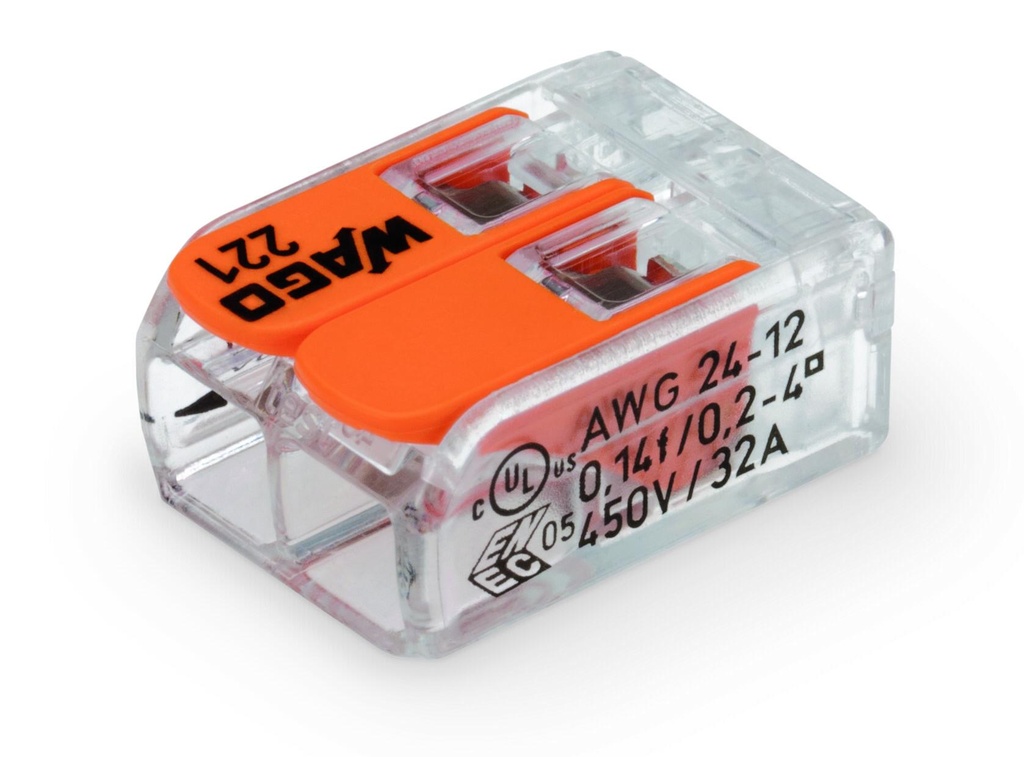

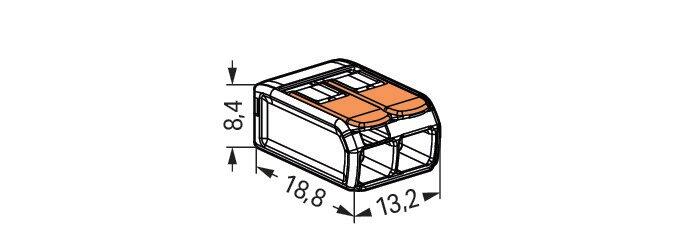

221-412 221-413 221-415

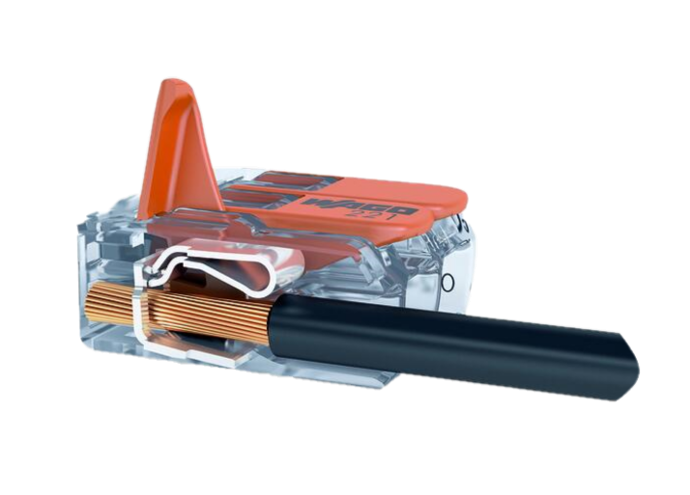

![](/web/image/3967-efcda1d5/221%20Clamp.png?access_token=c804829f-1a33-473d-909e-85a8bb68402f)
The benefits
![](/web/image/3883-4d9d0b71/221-benefits.png?access_token=a8297e28-a0bf-4563-b951-30ed4a2ab7ac)
- Ease of use - pull the lever up, insert a conductor, push the lever back down
- Available as 2-, 3- and 5-wire connectors
- Easily terminate conductors from:
0.2mm to 4mm² / 24AWG to 12AWG
0.5mm to 6mm² / 20AWG to 10AWG - Connect solid, stranded, fine-stranded conductors
- Time savings for installers and device manufacturers
- Quickly install devices with higher levels of power consumption
- Safely install long cable runs with larger conductor cross sections

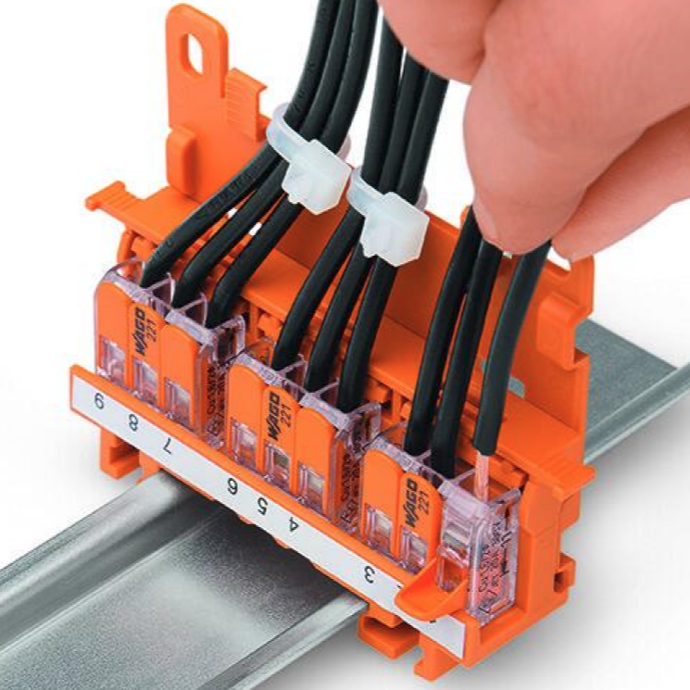

- Mounting carrier for installation conforms to standards
- Custom carriers are possible
Example Applications
![](/web/image/3973-807a246e/221%20Application%201.jpeg?access_token=558488cc-12e0-484c-94ed-8961b15c7f3f)
Wiring fine-stranded conductors in junction boxes
![](/web/image/3972-2ef848f1/221%20Application%202.jpeg?access_token=017e3607-c658-41ec-b6d6-dc8cc1b68f95)
Custom low-voltage lighting system
![](/web/image/3974-9e66142f/221%20Application%203.jpeg?access_token=88500883-ea5f-493a-b569-437a1a604f89)
Lighting distribution in a ceiling canopy
![](/web/image/3975-c31d4adb/221%20Application%204.jpeg?access_token=688b062d-a164-48cb-826e-0ce4daa00ade)
Pendant light connection in a suspended ceiling
