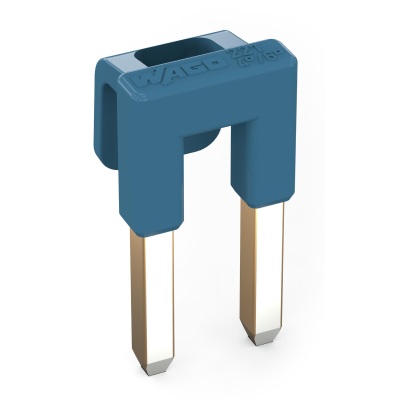

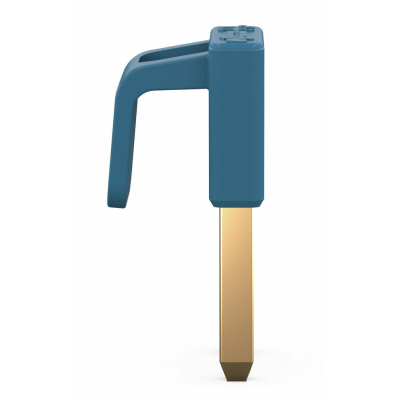

221 Jumper
221 Series Jumper - 2-way - 41A @ 400V
Brand: WAGO |
The WAGO 221 Series Jumper
Extend your connections
Without locking function:
![](/web/image/4277-f17a5963/Jumpers%20Thumb.png?access_token=cc1c163e-968b-446c-9337-7c93ea5b7e8f)

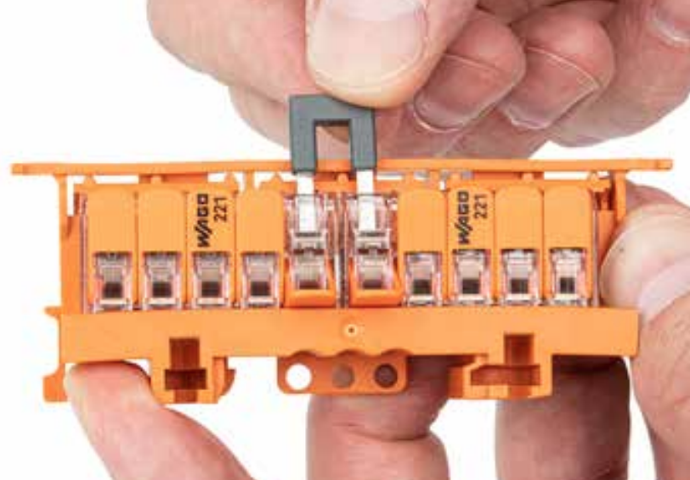

Step 1
Insert the jumper without a locking function into open clamping units.
![](/web/image/4280-11f2fb65/Jumpers%20without%20locking.png?access_token=43161ba3-1b54-43df-827d-7bbec3ed55d5)

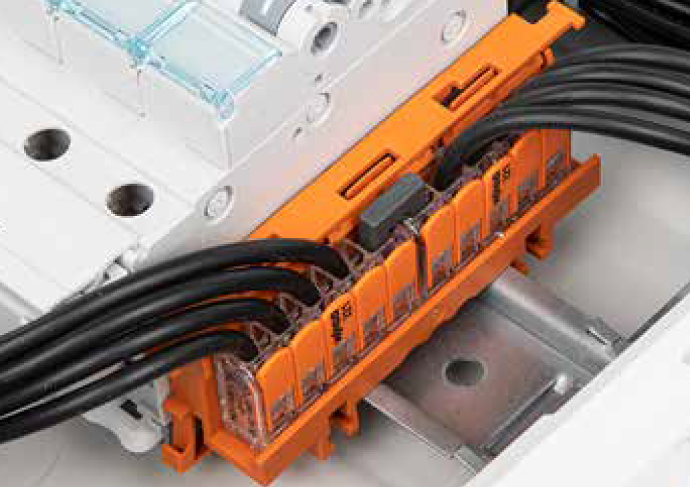

Step 2
The jumper without a locking function is plugged into the splicing connectors.
With locking function:
![](/web/image/4282-1ca148c5/Jumpers%20Thumb%20-%20blue.png?access_token=de855538-8fea-4f18-8996-b1cf9984484a)

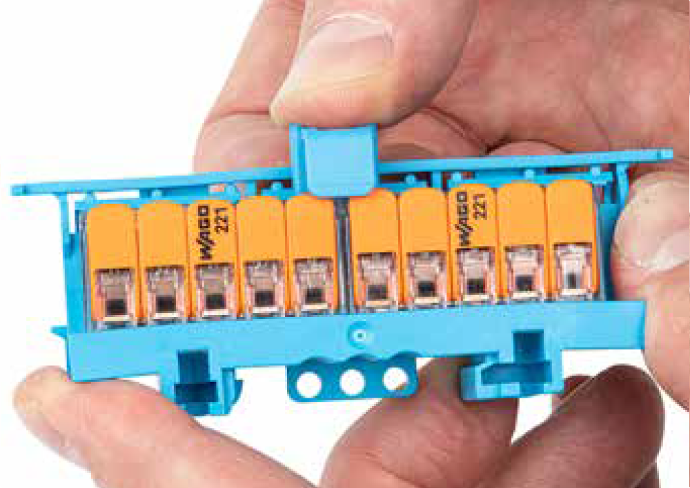

Step 1
Insert the jumper with a locking function into open clamping units.
![](/web/image/4281-06fb48ef/Jumpers%20with%20locking.png?access_token=1a593e25-7c7b-400e-b17c-bf6779533a7c)

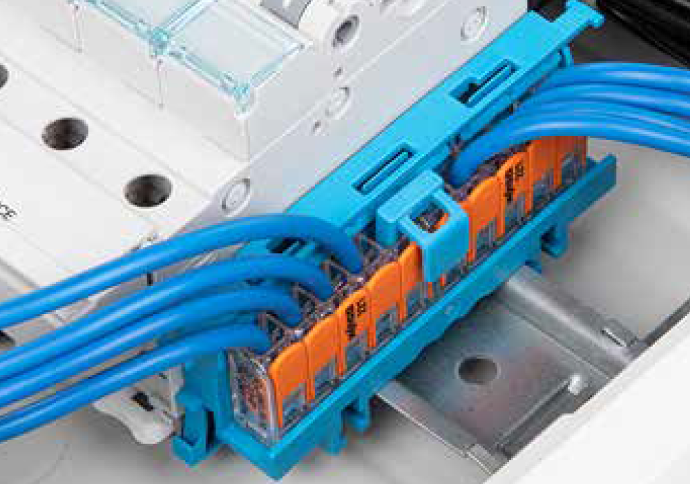

Step 2
The jumper with a locking function is plugged into the splicing connectors.
Removal of jumper with a locking function:
![](/web/image/4279-00bbd805/Jumpers%20cut.png?access_token=516eca12-60ef-4901-b9d7-34a4400b6cd0)

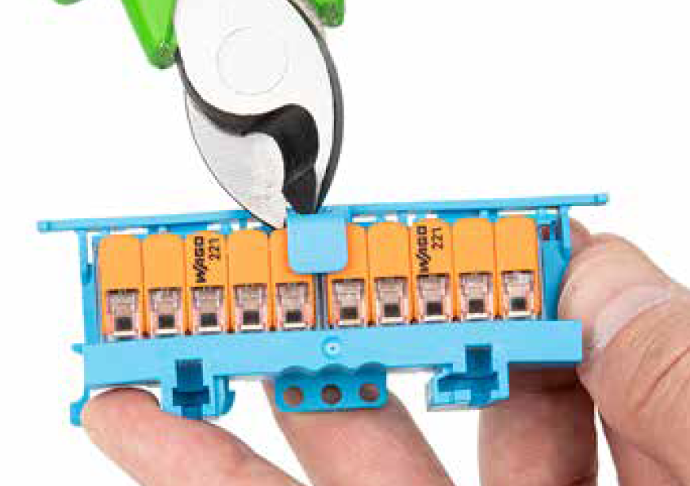

Step 1
Remove the locking mechanism for intentional jumper removal.
![](/web/image/4278-2812699e/Jumpers%20remove.png?access_token=1a999c68-d4ac-4a30-8531-a5f9ecec4625)

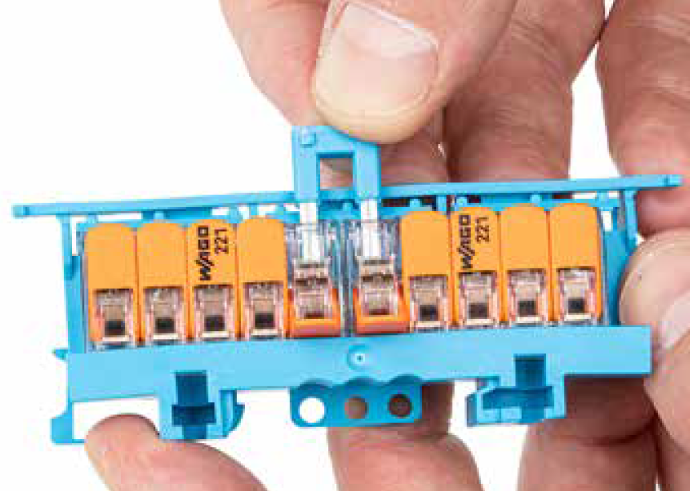

Step 2
Remove the jumper from open clamping units.
