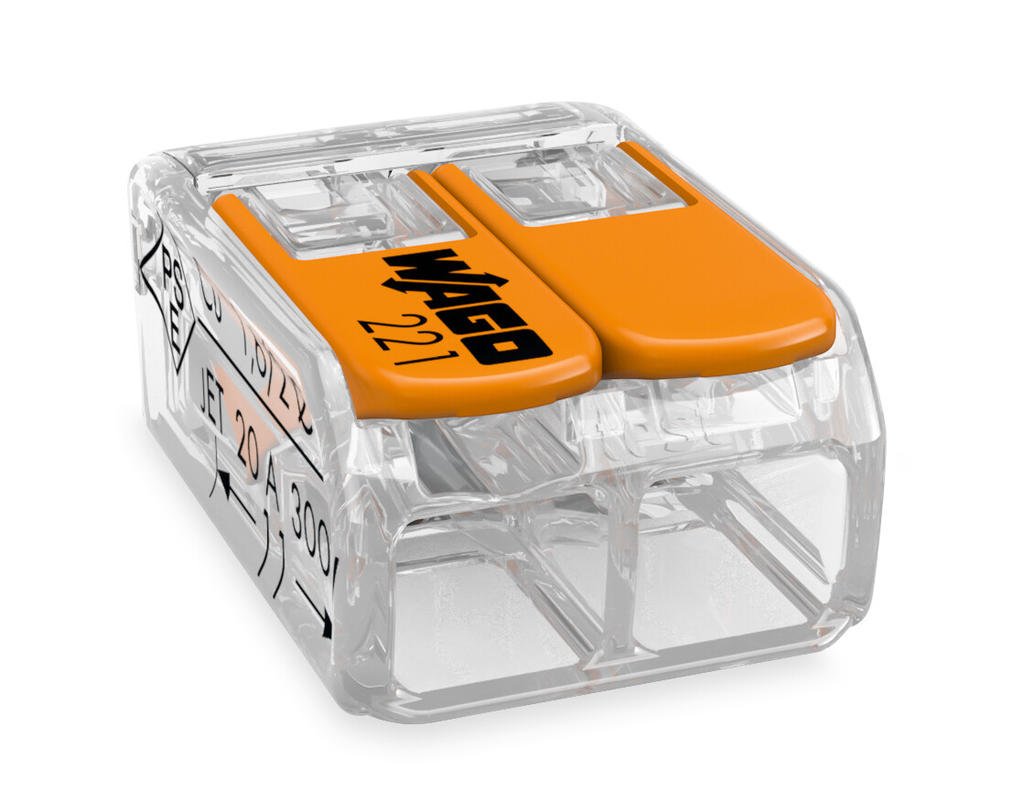

221 Series Connector

https://www.surgetech.com.cy/web/image/product.template/2064/image_1920?unique=27b2af7

WAGO COMPACT Splicing CAGE CLAMP® Connector
- for all conductor types
- with orange levers

€ 0.37 0.37 EUR € 0.37

€ 0.37

Not Available For Sale

(€ 0.44 / Units)
  • Brand
  • # of Conductors
  • All Conductor Types
  • Colour
  • IEC/EN 60664 Spec
  • UL 486C Spec

This combination does not exist.

Brand: WAGO
Colour: Orange
IEC/EN 60664 Spec: 450V @ 32A
UL 486C Spec: 600V @ 20A

Prices do not include VAT

Delivery across Cyprus:
Same day or next working day if order is placed before 12pm

Terms and Conditions

Meet the WAGO 221 Series Splicing Connector

Flexible. Fast. Safe.


Pull the lever up, insert a conductor and push the lever back down - done!

The 221 Series Splicing Connector connects solid, stranded and fine-stranded conductors easily, quickly and safely.

But this connector wants to do more!

The 221 Series Splicing Connector is well-suited for the following applications:

  • Building Installations
  • Hazardous areas
  • Within Devices



Conductor Termination

Step 1

Strip conductor to 11mm

Step 2

Lift the lever to open the clamping unit and insert the stripped conductor

Step 3

Lower the lever to close the clamp

For all conductors

  • Fine Stranded

  • Stranded

  • Solid

221-412 221-413 221-415


The benefits

  • Ease of use - pull the lever up, insert a conductor, push the lever back down
  • Available as 2-, 3- and 5-wire connectors
  • Easily terminate conductors from:
    0.2mm to 4mm² / 24AWG to 12AWG
    0.5mm to 6mm² / 20AWG to 10AWG
  • Connect solid, stranded, fine-stranded conductors
  • Time savings for installers and device manufacturers
  • Quickly install devices with higher levels of power consumption
  • Safely install long cable runs with larger conductor cross sections
  • Mounting carrier for installation conforms to standards
  • Custom carriers are possible

Example Applications

Wiring fine-stranded conductors in junction boxes

Custom low-voltage lighting system

Lighting distribution in a ceiling canopy

Pendant light connection in a suspended ceiling
