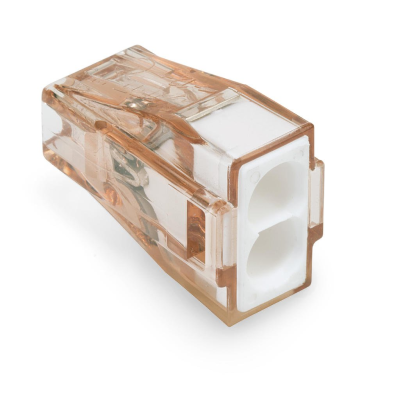

773 Series Connector - 4mm²

- for solid conductor types 1.5-4.0 mm² / 16-12 AWG
- IEC/EN 60664-1, 400V @ 24A

€ 0.24 0.24 EUR € 0.24

€ 0.24

(€ 0.00 / Units)
  • Brand
    • WAGO
  • # of Conductors
    • 2
    • 4
    • 6
  • Solid Conductors
  • IEC/EN 60664-1 Spec

This combination does not exist.

Brand: WAGO
Solid Conductors: 1.5-4mm² / 16-12 AWG
IEC/EN 60664-1 Spec: 400V @ 32A

Prices do not include VAT

Delivery across Cyprus:
Same day or next working day if order is placed before 12pm

Terms and Conditions

The WAGO 773 Series Connectors

When the 2273 and 2773 Series are not enough

Heavier gauge, no problem!

Similar to the rest of the WAGO connector series, the WAGO 773 series have been specifically designed with the use in junction boxes in mind featuring the patented PUSH WIRE ® technology.


Step 1

Strip a solid conductor to 12mm

Step 2

Termination: Insert stripped solid conductor until it hits the backstop

Step 3

Removal: Hold the conductor to be removed and twist alternately left and right while pulling the connector


As per all WAGO connectors, the 773 Series also features dedicated testing ports designed to accept all test probes

Also Available for other gauges:
