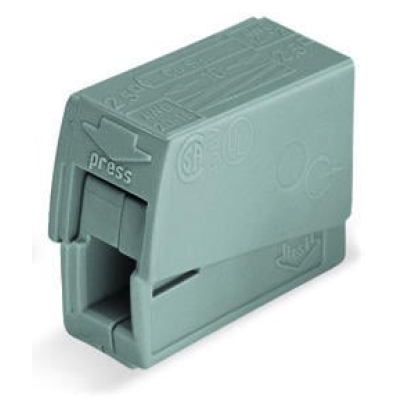

224 Series Connector

https://www.surgetech.com.cy/web/image/product.template/2069/image_1920?unique=00013e9

WAGO PUSH WIRE®CAGE CLAMP® Lighting Connector
- for solid conductor types on installation side 1-2.5 mm² / 16-14 AWG
- for all conductor types on lighting side 0.5-2.5 mm² / 20-14 AWG
- IEC/EN 60664, 400V @ 24A

€ 0.21 0.21 EUR € 0.21

€ 0.21

Not Available For Sale

(€ 0.25 / Units)
  • Brand
  • # of Conductors
  • Solid Conductors
  • Stranded Conductors
  • Colour

This combination does not exist.

Brand: WAGO
Solid Conductors: 0.5-2.5 mm² / 20-14 AWG
Stranded Conductors: 0.5-2.5 mm² / 20-16 AWG

Prices do not include VAT

Delivery across Cyprus:
Same day or next working day if order is placed before 12pm

Terms and Conditions

Meet the WAGO 224 Series Lighting Connectors

These connectors provide the ideal connection between solid and fine stranded conductors allowing for quick and safe installation without an operating tool.

They are suitable for virtually any electrical home equipment such as:

  • lighting fixtures
  • roller shutter motors
  • fans
  • boiler controllers
  • circulating pumps



The perfect combination of the CAGECLAMP ® and PUSHWIRE ® technologies


Insert any type of conductor on the lighting side using the CAGECLAMP® technology


Insert a solid conductor on the installation side using the PUSHWIRE® technology

Example Applications

Ceiling pendant lighting fixture

Ceiling plafo-style lighting fixture

Measuring the connection using the dedicated test ports
