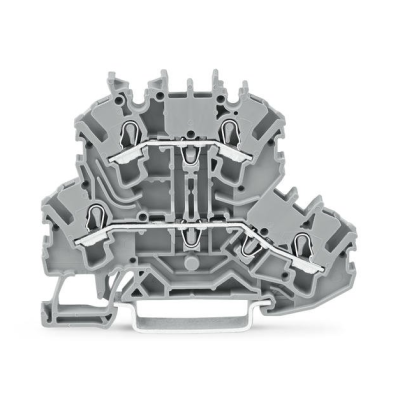

2002 - Double Deck Terminal Block

WAGO TOPJOB® S, Double-deck terminal block, 2.5mm²
- Push-in CAGE CLAMP® with operating slots
- IEC/EN, 500V @ 24A- IEC/EN, 400V @ 28A
- for DIN-35 mounting, without marker carrier

€ 1.18 1.18 EUR € 1.68

€ 1.68

(€ 0.00 / Units)
  • Brand
    • WAGO
  • IEC/EN 60947-7-1 Spec
    • 500V @ 24A
  • UL 1059 Spec
  • # of Levels
  • # of Jumper Slots
  • Nominal Cross Section
  • Mounting Type
  • Marking Level
  • Insulation Material
  • Connectable Conductor Materials
  • C22.2 No 158 Spec
  • All Conductor Types
    • 0.25-4mm² / 22-12 AWG
  • Colour
  • Ex e II Spec
  • Ex Spec
  • Marking
    • None
    • L/L
    • L/N
    • N/L

This combination does not exist.

Brand: WAGO
IEC/EN 60947-7-1 Spec: 500V @ 24A
UL 1059 Spec: 300V @ 20A
# of Levels: 2
# of Jumper Slots: 4
Nominal Cross Section: 2.5mm²
Mounting Type: DIN-35 rail
Marking Level: Center/side marking
Insulation Material: Polyamide (PA66)
Connectable Conductor Materials: Copper
C22.2 No 158 Spec: 600V @ 20A
All Conductor Types: 0.25-4mm² / 22-12 AWG
Ex e II Spec: 440V @ 20A
Ex Spec: ATEX: PTB 03 ATEX 1162 U / IECEx: PTB 03.0004U (Ex eb IIC Gb)
