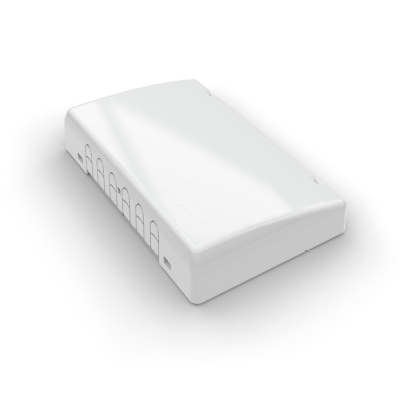

The WAGO 207 Junction Box

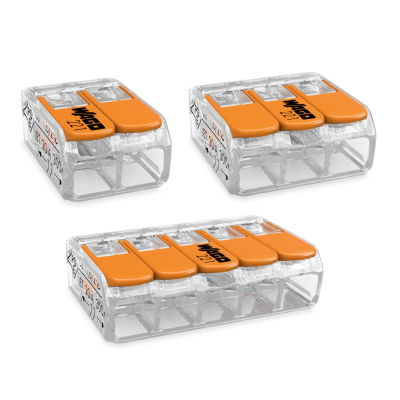

for WAGO 221 Series splicing connectors
More connections?
Get organised.
Ever had complicated connections creating a mess in junction boxes?
Well, here is your solution!

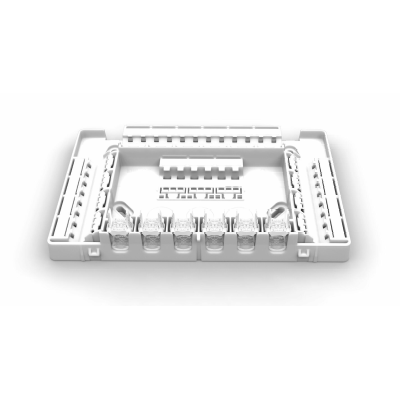

The junction box provides a maximum of 60 tidy and organised connections within a confined space. It is designed for surface screw mounting on the wall or the ceiling. The cover can be snapped on and off without screws for easy access. The WAGO 221 Series connectors are easily mounted on the holders by snapping them in, and the marking strips are mounted by simply pushing them in allowing for a documented connection plan.
Suitable for numerous systems such as:
- Automation
- Central Heating
- Ventilation
- Cooling
- Alarm and burglary
- Access
Watch the in-depth review of the WAGO 207-4301 by eFixx
Snap the connector into the holder
Release the connector from the holder
Inserting a conductor
Snap the marking strips into the holder

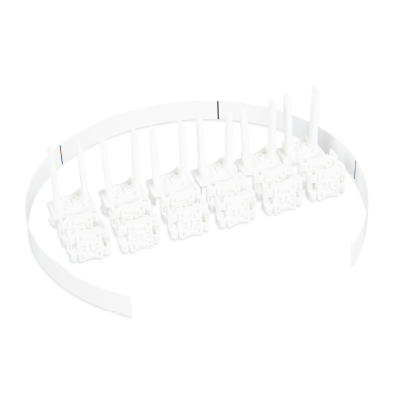

Insert the cable into the strain relief. The snap-in strain reliefs are designed for cable diameters from 4 mm to 11 mm
Break the cable entry lid out of the cover
Snap on the junction box cover
Open the junction box cover
Can be used with
*only 4mm² variants
![[221-412] 221 Series Connector (2, 0.2-4mm² / 24-12 AWG)](/web/image/product.product/2430/image_128/%5B221-412%5D%20221%20Series%20Connector%20%282%2C%200.2-4mm%C2%B2%20-%2024-12%20AWG%29?unique=4efdc0c)
![[221-500] 221 Series Mounting Carrier (0.2-4mm² / 24-12 AWG, Orange)](/web/image/product.product/2443/image_128/%5B221-500%5D%20221%20Series%20Mounting%20Carrier%20%280.2-4mm%C2%B2%20-%2024-12%20AWG%2C%20Orange%29?unique=58bdb32)
![[2273-202] 2273 Series Connector (2)](/web/image/product.product/2458/image_128/%5B2273-202%5D%202273%20Series%20Connector%20%282%29?unique=dda2ccb)
![[2273-500] 2273 Series Mounting Carrier](/web/image/product.product/2463/image_128/%5B2273-500%5D%202273%20Series%20Mounting%20Carrier?unique=3101f49)
![[243-112] 243 Mounting Carrier (4)](/web/image/product.product/2472/image_128/%5B243-112%5D%20243%20Mounting%20Carrier%20%284%29?unique=61f3188)
![[207-1331] Gelbox (1, 0.2-4mm² / 24-12 AWG)](/web/image/product.product/2583/image_128/%5B207-1331%5D%20Gelbox%20%281%2C%200.2-4mm%C2%B2%20-%2024-12%20AWG%29?unique=8ffdfb4)
